Tactile Rotary Encoder

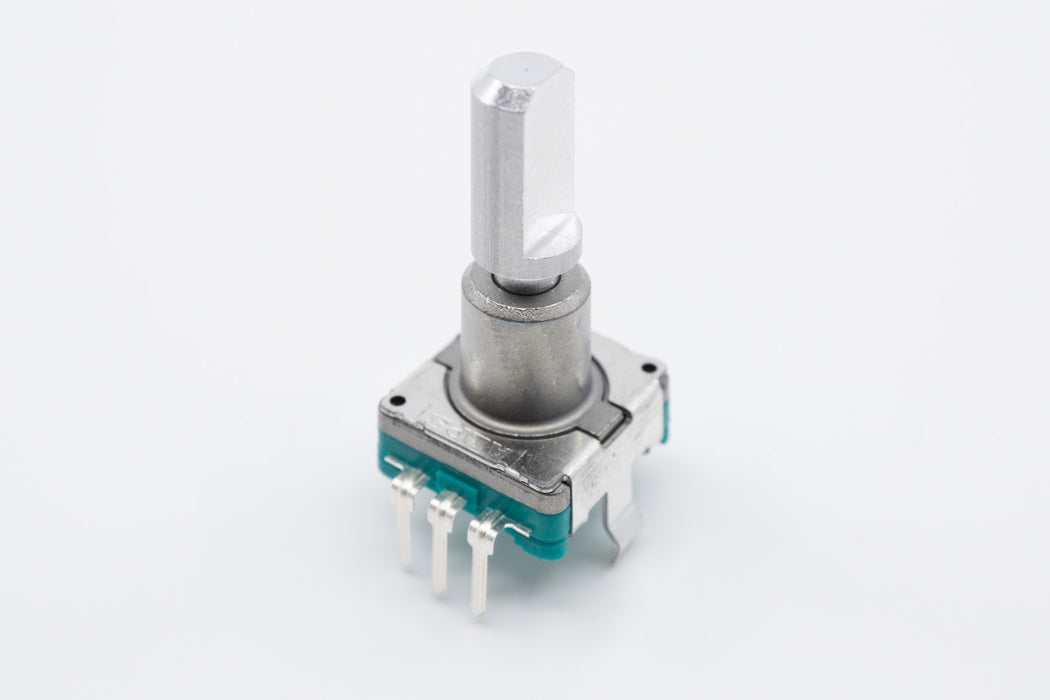

An original EC11 encoder by ALPS. Designed to deal with harsh environments, it requires more force to operate giving it very tactile feedback. You'll never miss an actuation when you turn the encoder knob.
This encoder actuates thirty times on a full cycle, so one full twist will perform thirty actions.
The encoder also acts as a button, which you can assign in your keymap. The actuation force required is roughly 500 grams, so the button is best used for non-frequent actions.
Specifications
Green
- Operating force: ±400gF
- Button travel: 1,5mm
- Detents: 36
- Rated for: 15.000 cycles, 20.000 button presses.
- Part number: EC11E18244A5
The resolution of this encoder in QMK is 4, which is the default. You don't need to change the resolution for it to work properly.
Gray (Discontinued)
- Operating force: ±600gF
- Detents: 30
- Button travel: 0,5mm
- Rated for: 100.000 cycles, 100.000 button presses.
- Part number: EC11K1524406
The resolution of this encoder in QMK is 2. This means you'll want to change a bit of code for your encoder to work correctly. To read how to change this setting, please read My encoder is skipping actions when turning it.
Additional notes
Multiple encoder types can be used on the same keyboard. The Kyria supports one encoder per half. You can set a specific resolution per encoder in firmware, allowing you to use both an Linear Rotary Encoder and this encoder together.
Read more
- How can I use a rotary encoder? (Includes ready to use QMK code samples)
