Murata Piezo Buzzer

Murata Piezo Buzzer

SKU MRT-PKL-BZR-001
€1,61 - €1,61
€1,95
€1,61 excluding sales tax
€1,61 - €1,61
€1,95
€1,61 excluding sales tax
List price includes 21% Dutch sales tax. It will be adjusted to your local tax rate during checkout.
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders

Beep beep! A piezo buzzer can buzz in various frequencies, so you can play simple melodies and alert sounds when using custom firmware.

It provides a clear sound using the QMK Audio Feature.

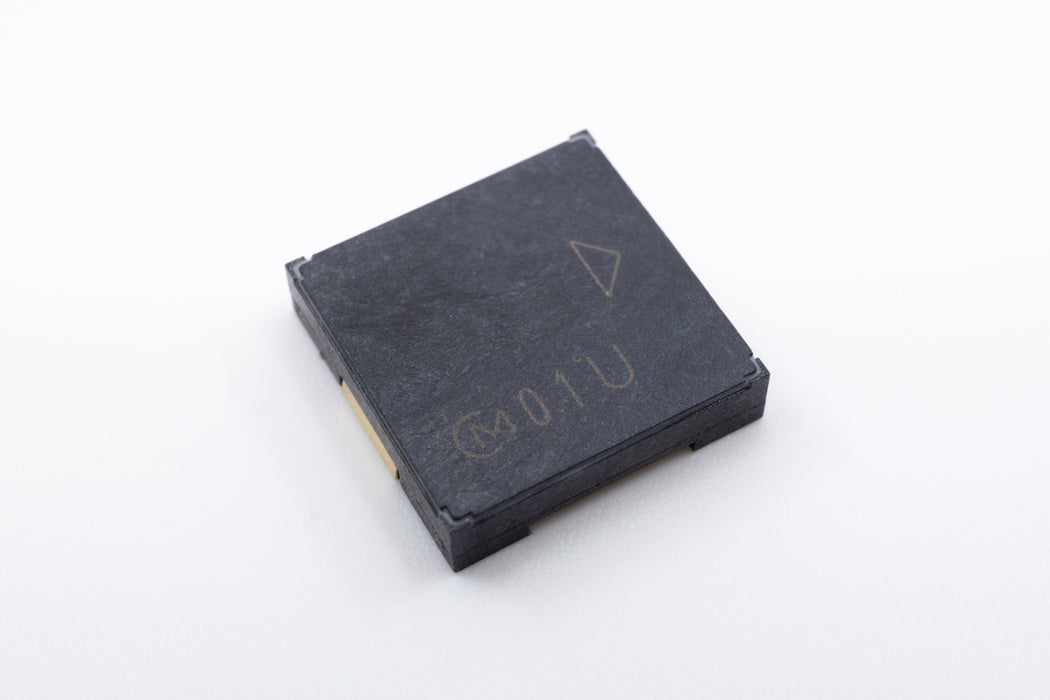

This Murata Piezo buzzer has a small form-factor. It's thin and lightweight, so you won't notice it when carrying your keyboard.

Specifications

  • Part number: PKLCS1212E4001-R1
  • Size: 12.0 x 12.0 x 3.0mm
  • Frequency: 4.0kHz
  • Sound pressure level: 84dB typical, 75dB minimal
  • Maximum input voltage: 12.5V
  • Weight: 0,36g
  • Data sheet

Compatibility

This piezo buzzer is compatible with the Elora keyboard, and requires soldering.

It's also compatible with various open source kits, such as some versions of the Ergodash.
